TYRE PYROLYSIS PLANT
Using the most cost effective recycling technology, Tyre Recycling Plant has become a complete choice among many customers. The outcome is almost 100% and the process does not leave any waste behind. Moreover, the system is eco friendly as it does not generate pollution and produce valuable products, having good market demand. Our offered range is integrated with unrivaled characteristics, including rugged design, optimum performance, high durability and abrasion resistance body. Thus, known to produce an alternate source of energy, this minimizes the usage of petroleum products and natural gases.
TECHNICAL SPECIFICATION
RC-10
Equipment type | FI – RF-10 |
Raw material | Nylon / Radial Tyre |
Structural form | Horizontal rotation |
24-hour Capacity | 8.5 ton |
Oil yield [40 to 45% oil] | 3.8 ton |
Steel Scrap [15 to 20%] | 1.7 ton |
Carbon [30 to 35 %] | 2.5 ton |
Operating pressure | Normal ( 0.1 To 0.3 Kg) |
Material of Reactor | SS PLATE |
Thickness of Reactor | 14 mm |
Rotate speed of Reactor | 0.3turn/minute |
Total power | 25KW |
Mode of Water cooling | Circular cooling |
Cooling area of condenser | 51 Sq.Meter |
Kind of transmission | Dual Motor Arrangement |
Noise dB(A) | ≤85 |
Size of Reactor(D×L) | 2.6×6.6 Mt. |
Working form | Intermittent operation |
Lend Requirement | 10,800 Sq Feet. |
Delivery time | 10 Days |
Installation Time | 15 To 20 Day |
Training Time | 5 Days |
RC-12
tem | Model |
Equipment type | FI – RF-12 |
Raw material | Nylon / Radial Tyre |
Structural form | Horizontal rotation |
24-hour Capacity | 10.5 ton |
Oil yield [40 to 45% oil] | 4.4 ton |
Steel Scrap [15 to 20%] | 1.6 ton |
Carbon [30 to 35 %] | 3.6 ton |
Operating pressure | Normal ( 0.1 To 0.3 Kg) |
Material of Reactor | SS PLATE |
Thickness of Reactor | 16 mm |
Rotate speed of Reactor | 0.3turn/minute |
Total power | 33KW |
Mode of Water cooling | Circular cooling |
Cooling area of condenser | 77 Sq.Meter |
Kind of transmission | Dual Motor Arrangement |
Noise dB(A) | ≤85 |
Size of Reactor(D×L) | 2.8×6.6 Mt. |
Working form | Intermittent operation |
Lend Requirement | 10,800 Sq Feet. |
Delivery time | 10 Days |
Installation Time | 15 To 20 Day |
Training Time | 5 Days |
RF-5
RF-5 is specially designed to converts the waste materials and tyres into pyrolysis oils, fuel and energy.
tem | Model |
Equipment type | FI – RF-5 |
Structural form | Horizontal rotation |
Oil yield [40 to 45% oil] | 1.72 ton |
Carbon [30 to 35 %] | 1.29 ton |
Material of Reactor | SS PLATE |
Rotate speed of Reactor | 0.3turn/minute |
Mode of Water cooling | Circular cooling |
Kind of transmission | Dual Motor Arrangement |
MSize of Reactor(D×L) | 2.2×6.0 Mt. |
Lend Requirement | 10,800 Sq Feet. |
Installation Time | 15 To 20 Day |
Raw material | Nylon / Radial Tyre |
24-hour Capacity | 4.3 ton |
Steel Scrap [15 to 20%] | 0.86 ton |
Operating pressure | Normal ( 0.1 To 0.3 Kg) |
Thickness of Reactor | 12 mm |
Total power | 20KW |
Cooling area of condenser | 20 Sq.Meter |
Noise dB(A) | ≤85 |
Working form | Intermittent operation |
Delivery time | 10 Days |
Training Time | 5 Days |
GALLERY
TYRE PYROLYSIS PLANT VIDEO
![](../../../images/gallery14/Tyre_Recycling_Plant_26.jpg)

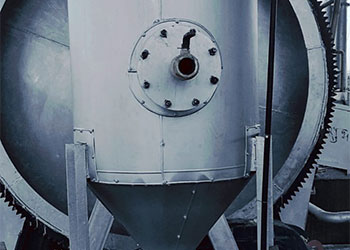

TYRE PYROLYSIS PLANT
![](../../../images/gallery14/Tyre_Recycling_Plant_27.jpg)
TYRE PYROLYSIS PLANT
![](../../../images/gallery14/Tyre_Recycling_Plant_28.jpg)

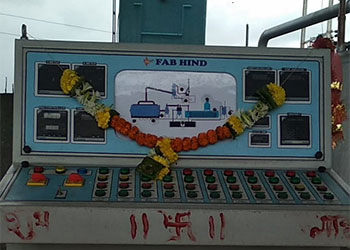

TYRE PYROLYSIS PLANT
![](../../../images/gallery14/Tyre_Recycling_Plant_29.jpg)

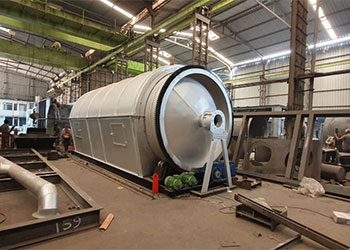

TYRE PYROLYSIS PLANT
![](../../../images/gallery14/Tyre_Recycling_Plant_30.jpg)

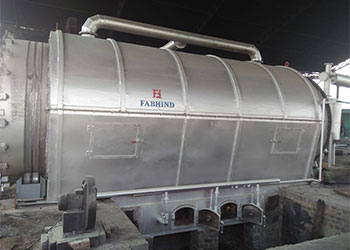

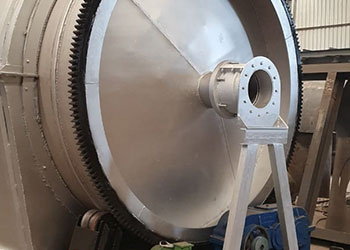

TYRE PYROLYSIS PLANT
![](../../../images/gallery14/Tyre_Recycling_Plant_31.jpg)

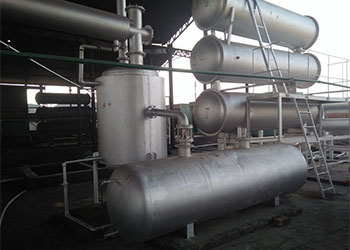

TYRE PYROLYSIS PLANT
![](../../../images/gallery14/Tyre_Recycling_Plant_32.jpg)

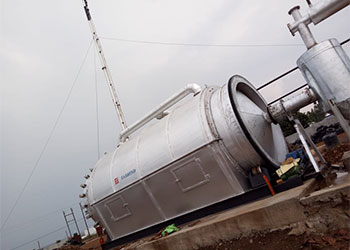

TYRE PYROLYSIS PLANT
![](../../../images/gallery14/Tyre_Recycling_Plant_33.jpg)
TYRE PYROLYSIS PLANT
![](../../../images/gallery14/Tyre_Recycling_Plant_34.jpg)

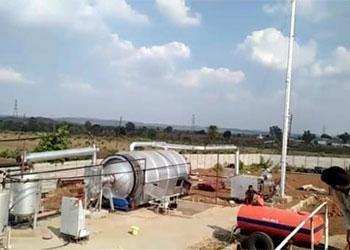

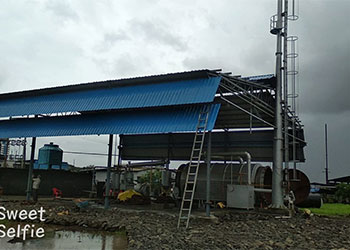

TYRE PYROLYSIS PLANT
![](../../../images/gallery14/Tyre_Recycling_Plant_35.jpg)
TYRE PYROLYSIS PLANT
![](../../../images/gallery14/Tyre_Recycling_Plant_36.jpg)

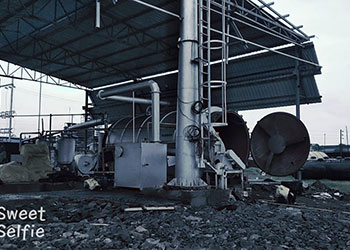

TYRE PYROLYSIS PLANT
![](../../../images/gallery14/Tyre_Recycling_Plant_37.jpg)

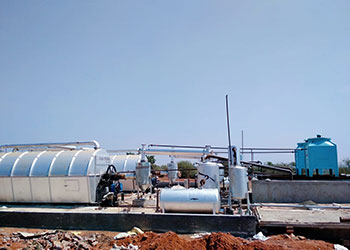

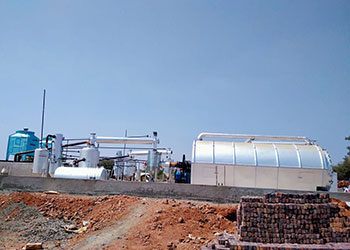

TYRE PYROLYSIS PLANT
![](../../../images/gallery14/Tyre_Recycling_Plant_38.jpg)
TYRE PYROLYSIS PLANT
![](../../../images/gallery14/Tyre_Recycling_Plant_39.jpg)

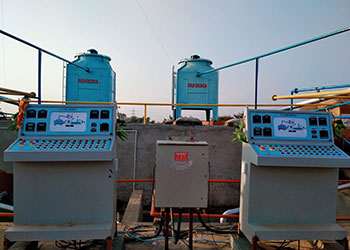

TYRE PYROLYSIS PLANT
![](../../../images/gallery14/Tyre_Recycling_Plant_40.jpg)
TYRE PYROLYSIS PLANT
![](../../../images/gallery14/Tyre_Recycling_Plant_41.jpg)

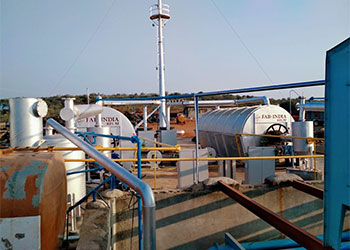

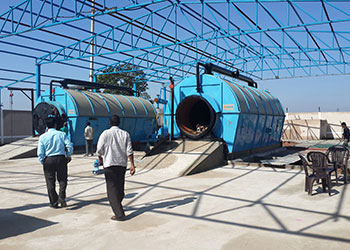

TYRE PYROLYSIS PLANT
![](../../../images/gallery14/Tyre_Recycling_Plant_25.jpg)

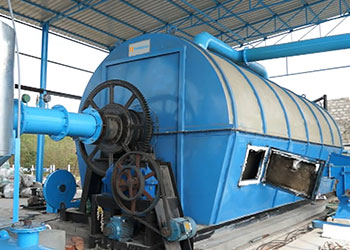

TYRE PYROLYSIS PLANT REACTORS
![](../../../images/gallery14/Tyre_Recycling_Plant_1.jpg)

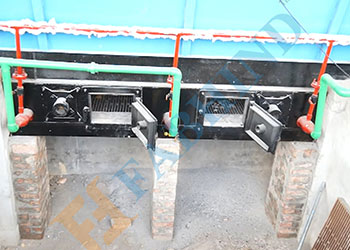

TYRE PYROLYSIS PLANT REACTORS
![](../../../images/gallery14/Tyre_Recycling_Plant_2.jpg)
TYRE PYROLYSIS PLANT FIRE SCREEN
![](../../../images/gallery14/Tyre_Recycling_Plant_3.jpg)

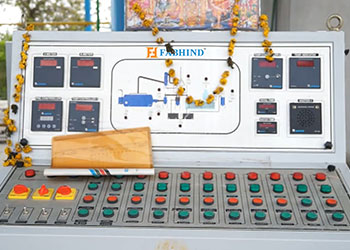

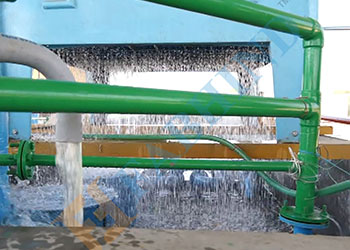

TYRE PYROLYSIS PLANT PANEL
![](../../../images/gallery14/Tyre_Recycling_Plant_4.jpg)

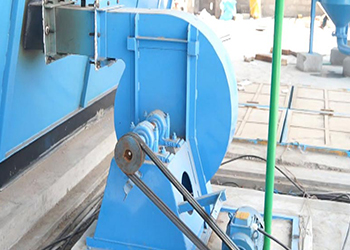

TYRE PYROLYSIS PLANT COOLING TOWER
![](../../../images/gallery14/Tyre_Recycling_Plant_5.jpg)
TYRE PYROLYSIS PLANT COOLING BLOWER
![](../../../images/gallery14/Tyre_Recycling_Plant_6.jpg)

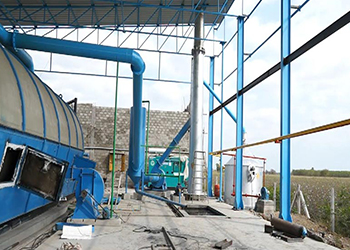

TYRE PYROLYSIS PLANT SCRUBBER SYSTEM
![](../../../images/gallery14/Tyre_Recycling_Plant_7.jpg)

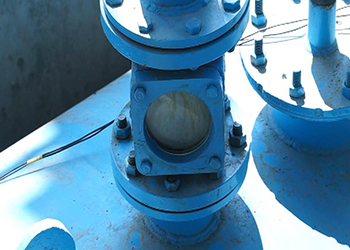

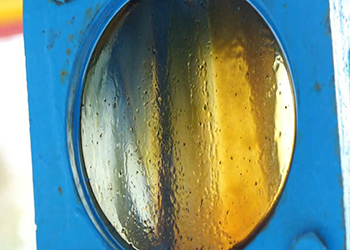

TYRE PYROLYSIS PLANT CASTING GLASS
![](../../../images/gallery14/Tyre_Recycling_Plant_8.jpg)

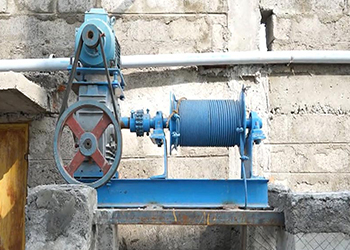

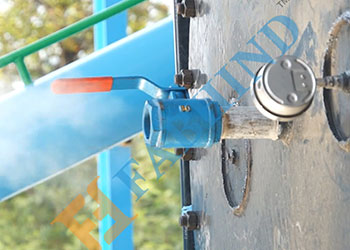

TYRE PYROLYSIS PLANT GLASS
![](../../../images/gallery14/Tyre_Recycling_Plant_9.jpg)
TYRE PYROLYSIS PLANT VALVE
![](../../../images/gallery14/Tyre_Recycling_Plant_13.jpg)
TYRE PYROLYSIS PLANT HOIST
![](../../../images/gallery14/Tyre_Recycling_Plant_14.jpg)

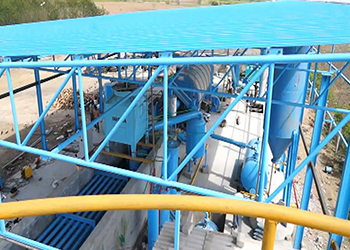

TYRE PYROLYSIS PLANT TANK
![](../../../images/gallery14/Tyre_Recycling_Plant_15.jpg)

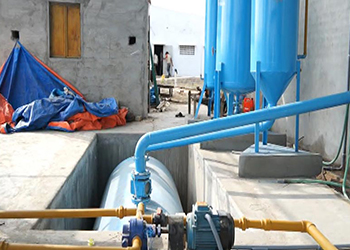

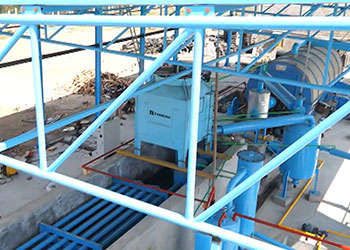

TYRE PLANT UNDER GROUND OIL TANK
![](../../../images/gallery14/Tyre_Recycling_Plant_16.jpg)
TYRE PYROLYSIS PLANT VIEW
![](../../../images/gallery14/Tyre_Recycling_Plant_17.jpg)
TYRE PYROLYSIS PLANT TOP VIEW
![](../../../images/gallery14/Tyre_Recycling_Plant_18.jpg)

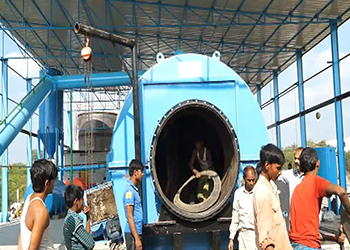

TYRE PYROLYSIS PLANT TYRE FEEDING
![](../../../images/gallery14/Tyre_Recycling_Plant_19.jpg)

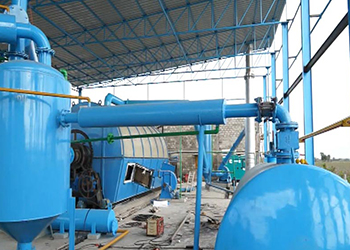

TYRE PYROLYSIS PLANT
![](../../../images/gallery14/Tyre_Recycling_Plant_20.jpg)

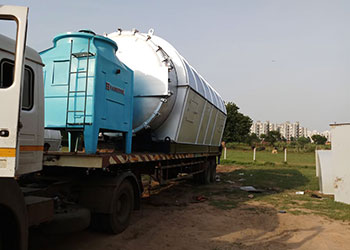

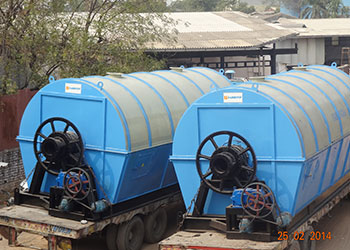

TYRE PYROLYSIS PLANT REACTORS
![](../../../images/gallery14/Tyre_Recycling_Plant_21.jpg)

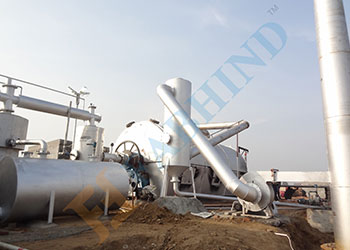

TYRE PYROLYSIS PLANT FULL DOOR MODEL
![](../../../images/gallery14/Tyre_Recycling_Plant_22.jpg)

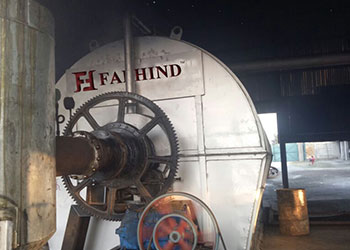

TYRE PYROLYSIS PLANT REACTOR LOADING
![](../../../images/gallery14/Tyre_Recycling_Plant_23.jpg)

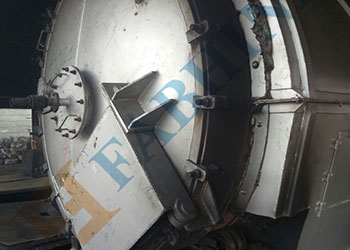

TYRE PYROLYSIS PLANT REACTOR
![](../../../images/gallery14/Tyre_Recycling_Plant_24.jpg)
