Road Construction Equipments

FABHIND is an ISO 9001:2015 company established in the year 1991. Since then it has tried hands on fabricating different machineries of various fields like chemical machineries, Pharmaceutical machineries, textile machineries, Recycling equipments etc. In 2005 it has entered road construction equipments manufacturing & since then FABHIND has never looked back. We FABHIND manufactured Asphalt batch mix plant, Drum mix plant, Wet mix macadam plant, Concrete batching plant, Asphalt sensor paver, Bitumen sprayer, Hydraulic broomer & bitumen decanter.

TYPES OF ROAD CONSTRUCTION EQUIPMENTS:

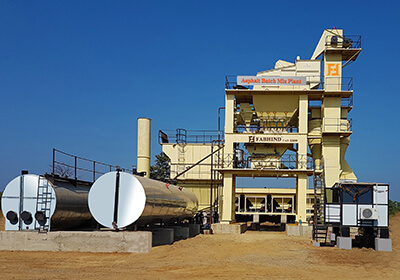

1. ASPHALT BATCH MIX PLANT:

FABHIND is now pioneer in manufacturing of Asphalt batch mix plant as it has taken into consideration all the steps for reducing plant cost & giving better quality to clients. FABHIND manufactures Asphalt batch mix plant of capacity ranging from 80 TPH-200 TPH. There are two different types of Asphalt batch mix plant:

  • Stationary Asphalt Batch Mix Plant
  • Mobile Asphalt Batch Mix Plant

We have made certain changes that are necessary to improve asphalt plant quality & to make it stronger. We have installed more than 75+ successful plants all over India. Keeping in mind client’s requirement, FABHIND has made small & economic model of capacity 80-100 TPH with & without silo for aggregate storage.

2. ASPHALT DRUM MIX PLANT:

For the project less than 2 crores drum mix plant is used by the contractors for the road construction purpose. Drum mix plant is similar to batch mix plant but it does not have tower including vibrating screen, hot bin unit & pug mill mixer unit. All other parts are similar to asphalt batch mix plant. Here in drum mix plant mixing of aggregate with bitumen is carried out in drying drum. So both the functions of heating aggregate & mixing it with bitumen is taking place in the same unit of drying drum. Asphalt drum mix plant is of two types: a) Stationary drum mix plant b) Mobile drum mix plant. FABHIND manufactures drum mix plant of different capacities ranging from 35-65 TPH

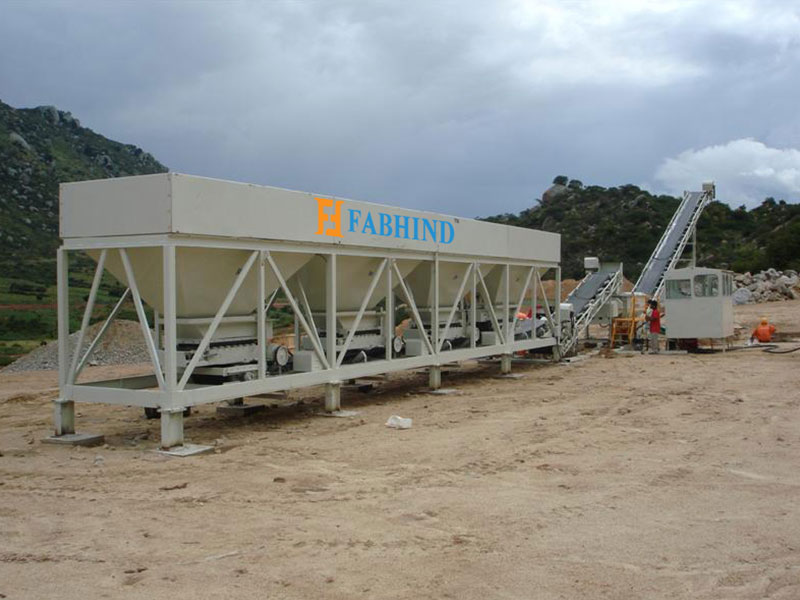

3. WET MIX MECADAM PLANT:

Wet mix macadam plant comprises of only three units: 1. Cold bin feeder 2. Pug mill mixer 3. Conveyor with loading hopper. Wet mix plant is of two types:

  • WMM (Wet mix macadam) PLANT
  • WBM (Water bounding macadam) PLANT

Both are convenient in its own way but as compared to WBM PLANT, WMM PLANT is more reliable & easy to use for the contractors as it is independent of labors.

4. ASPHALT SENSOR PAVER:

FABHIND Company manufactures Sensor paver with different type of screed & its length but currently more famous with the model 550 that holds the screed extension of the width 4.5 meters & half meters on each side is of Bolton type, which can be removed by loosening of bolts. We have design this model of FAB 550 in such a way that it offers high torque & low speed. The drives used in the manufacturing are fully hydrostatic operations and lubrication process to boost the performance of the machine. Selection of the paver variant would be as per the standard for the road construction requirement to acquire the best-in-class results.

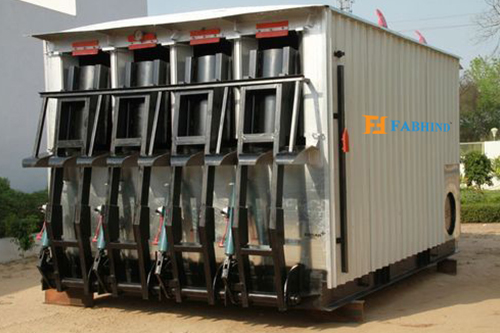

5. BITUMEN DECANTER:

We are manufacturing Bitumen drum decanter which is robust and rigid heavy structure made from standard steel. There are two parts in unit, upper part is calling Heating Chamber and lower part is storage tank for melt bitumen. Heating chamber and storage tank is fully insulated with 75mm Rockwool. Use of hot oil heating coils to indirectly heat up asphalt which can prevent asphalt quality from aging during heating. Seamless tubes are used for heating unit which are 2.9 mm thick and tested at 2000 psi. There is drum loading system by means of hydraulic cylinders and power pack to decreasing man power and production coast also.

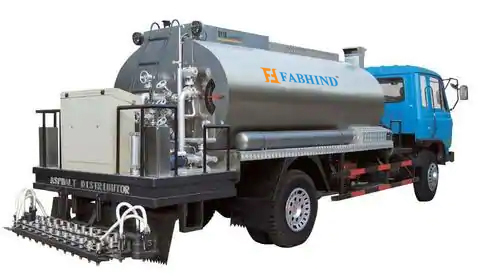

6. BITUMEN SPRAYER:

FABHIND manufactures bitumen sprayer of best quality having below quoted features:

  • Fully Insulated Tank with High Performance Oil Heating.
  • Air Cooled Diesel Engine and Positive Displacement Gear Pump
  • Fully-circulating Spray Bar.
  • Operator's Platform with Hood.
  • Simple Pressure Cleaning System Provided.
  • Digital Speed Indicator.
  • Moisture Separator for Clean & Dry Air.
